Workshop Overview
https://editor.p5js.org/

Note that the examples in this section were made by first doing a lot of planning on paper. You can see the steps I went through to determine the shapes needed, drawing order, coordinates, etc. in: ScenePlanning.pdf.

Shape drawing order

In order to have our shapes display correctly, the order in which we draw them matters!

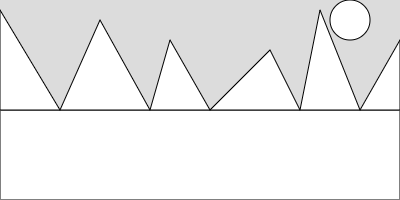

For example, consider the scene below:


We need to draw the sun first because it should always be at the “back” of the scene. Then the ground. Then the mountains.

The code for this is:

function setup() {
  // I need a 400x200 canvas
  createCanvas(400, 200);
}

function draw() {
  // Set the overall background color
  background(220);

  // Sun
  ellipse(350, 20, 40, 40);

  // Grass
  rect(0, 110, 400, 90);

  // Mountains
  triangle(0, 10, 0, 110, 60, 110);
  triangle(60,110, 100, 20, 150,110);
  triangle(150, 110, 170, 40, 210, 110);
  triangle(210, 110, 270, 50, 300, 110);
  triangle(300, 110, 320, 10, 360, 110);
  triangle(360, 110, 400, 40, 400, 110);
}

If we want to add a tree to the front of the picture, that code gets added after the set of triangles used to draw the mountains.

function draw() {
  // Set the overall background color
  background(220);

  // Sun
  ellipse(350, 20, 40, 40);

  // Grass
  rect(0, 110, 400, 90);

  // Mountains
  triangle(0, 10, 0, 110, 60, 110);
  triangle(60,110, 100, 20, 150,110);
  triangle(150, 110, 170, 40, 210, 110);
  triangle(210, 110, 270, 50, 300, 110);
  triangle(300, 110, 320, 10, 360, 110);
  triangle(360, 110, 400, 40, 400, 110);

  // Tree trunk
  triangle(220, 70, 200, 180, 230, 180);

  // Tree top
  ellipse(220, 70, 100, 100);

}

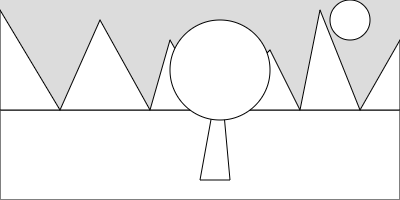

The results in the tree being drawn “on top” of the rest of the scene:


The concept of “order” in our code will be important when we add colors as well. Each time we define a color to be used, that color is used for everything drawn (until the color changes again).

Color Names

The simplest way to refer to colors when using p5.js is to use pre-defined colors names. For example: “Red”, “Yellow”, “Purple”, …

To see a list of available color names, see https://www.w3schools.com/colors/colors_names.asp

Background

To change the background color of the canvas, we use the command background with a color name:

background("Aqua");

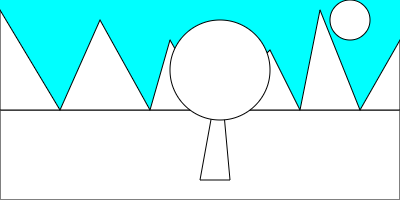

Adding this to our scene results in:


Filling shapes

In order to fill the various shapes in the scene with color, we use the command fill with a color name. However, once we set a fill color ALL shapes will become that color. For example, if we set the fill to "DarkOrange" before drawing the sun using:

  // Sun
  fill("DarkOrange");
  ellipse(350, 20, 40, 40);

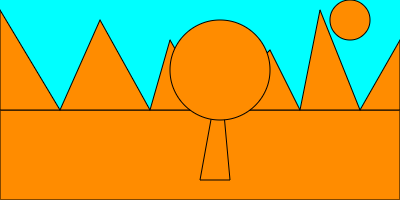

we get:


In order to have each shape be its own color, we need to keep changing the fill. The final code to produce a colored scene is:

function setup() {
  // I need a 400x200 canvas
  createCanvas(400, 200);
}

function draw() {
  // Set the overall background color
  background("Aqua");

  // Sun
  fill("DarkOrange");
  ellipse(350, 20, 40, 40);

  // Grass
  fill("Green");
  rect(0, 110, 400, 90);

  // Mountains
  fill("DarkGrey");
  triangle(0, 10, 0, 110, 60, 110);
  triangle(60,110, 100, 20, 150,110);
  triangle(150, 110, 170, 40, 210, 110);
  triangle(210, 110, 270, 50, 300, 110);
  triangle(300, 110, 320, 10, 360, 110);
  triangle(360, 110, 400, 40, 400, 110);

  // Tree trunk
  fill("Sienna");
  triangle(220, 70, 200, 180, 230, 180);

  // Tree top
  fill("LightGreen");
  ellipse(220, 70, 100, 100);

}

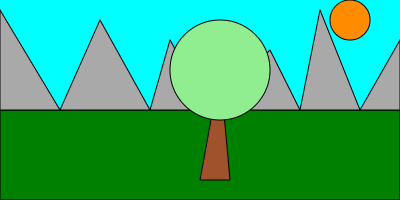

Stroke (line) color

The colored scene above looks pretty good, but the black outlines on each shape are distracting.

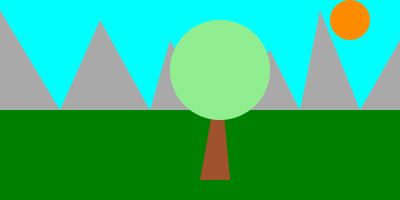

To make them go away, we can add noStroke(); right after setting the background color.

  // Set the overall background color
  background("Aqua");

  // Remove all shape outlines
  noStroke();

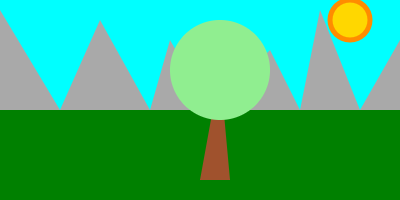

To change the outline color and weight (i.e. to make the sun look more interesting), we can use the commands stroke to set the color and strokeWeight to set the width of the line (in pixels).

  // Sun (with a gold border)
  stroke("DarkOrange");
  strokeWeight(5);
  fill("Gold");
  ellipse(350, 20, 40, 40);

  // Remove all future shape outlines
  noStroke();



Another Example

The code below adds colors to the shape example from last time. Run it and see what you get!

    // Create a blank canvas 600 pixels high and 600 pixels wide
    createCanvas(400, 400);

    // Set the background to yellow
    background("Yellow");

    // Set the line color (for all points, lines, and shape
    // outlines) to red
    stroke("Red");

    // Top left - a point and a line
    point(20, 20);

    line(30, 30, 150, 30);

    // Top center - rectangle
    // Draws with a default fill color of white
    rect(200, 30, 50, 80);

    // Top right - ellipse
    // Change the fill color to purple
    fill("Purple");
    ellipse(350, 50, 50, 80);

    // Center - circle via an ellipse with the same w and h
    // Fill color stays purple
    ellipse(200,200,70,70);

    // Bottom left - triangle
    // Change fill color to aqua
    fill("Aqua");
    triangle(50, 300, 30, 350, 70, 350);

    // Bottom right - quad
    // Change fill color back to white
    fill(255,255,255);
    quad(250, 300, 325, 325, 350, 375, 225, 370);

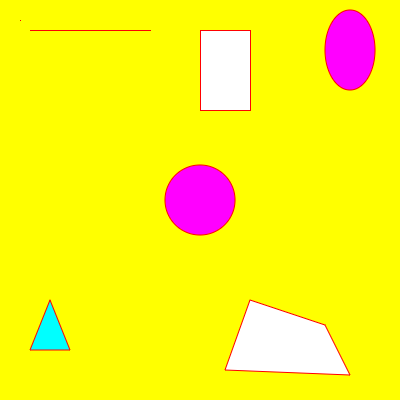

Click here for the color example result
